FRP Acid Tank | Vertical & Horizontal FRP Tank

Product Detail

FRP Acid Tank Solution

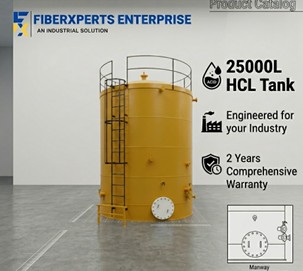

Vertical FRP Tank Vertical FRP acid tank

Vertical Tank Horizontal Tank Custom Capacity

Built for chemical safety, corrosion resistance, and long service life.

We manufacture premium quality FRP Acid Tanks for safe and long-lasting storage of acids and industrial chemicals. Our FRP tanks are available in vertical and horizontal designs and are fabricated using advanced FRP lamination technology.

For highly corrosive chemicals, we use Vinyl Ester Resin with 450 GSM Fiberglass Mat to create a strong corrosion-resistant inner layer. For lower corrosiveness, tanks can also be manufactured with Isophthalic Resin and Polyester Resin according to chemical compatibility.

Multiple layers of Roving Fiber reinforcement are applied throughout the tank structure for superior mechanical strength and durability.

Order Now View Specs

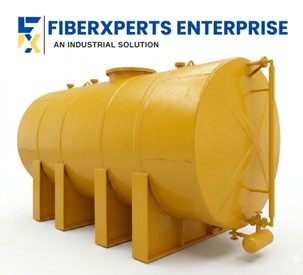

Horizontal acid tank — Horizontal Acid Tank

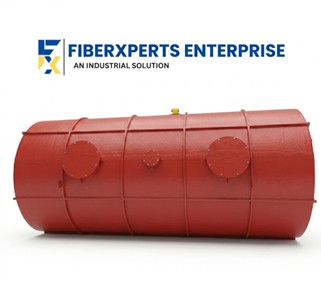

Horizontal acid tank fabrication — Horizontal Acid Tank

Vertical FRP tank close view — Vertical Tank

Specification

Technical Specifications

Material	Fiber Reinforced Plastic (FRP)
Resin Type	Vinyl Ester / Isophthalic / Polyester Resin
Reinforcement	450 GSM Fiberglass Mat & Roving Fiber
Tank Type	Vertical & Horizontal
Application	Acid & Chemical Storage
Installation	Indoor & Outdoor

Features

Excellent Corrosion Resistance
Heavy Duty Industrial Strength
Long Service Life
Leak Proof Construction
Low Maintenance
UV Resistant Finish
Custom Capacity & Design Available

Standard Vertical FRP Tank Dimensions

Capacity	Diameter	Height	Thickness
500 Ltr	800 mm	1000 mm	5-6 mm
1,000 Ltr	1000 mm	1300 mm	5-6 mm
2,000 Ltr	1200 mm	1800 mm	6-8 mm
5,000 Ltr	1800 mm	2200 mm	8-10 mm
10,000 Ltr	2200 mm	3000 mm	10-12 mm
20,000 Ltr	2800 mm	3500 mm	14-16 mm
30,000 Ltr	3200 mm	4000 mm	16-18 mm

Standard Horizontal FRP Tank Dimensions

Capacity	Diameter	Length	Thickness
1,000 Ltr	900 mm	1700 mm	5-6 mm
2,000 Ltr	1100 mm	2200 mm	6-8 mm
5,000 Ltr	1600 mm	3000 mm	8-10 mm
10,000 Ltr	1800 mm	4500 mm	10-12 mm
20,000 Ltr	2400 mm	5800 mm	14-16 mm
30,000 Ltr	2800 mm	7000 mm	16-18 mm

Chemicals Suitable for Storage

Hydrochloric Acid, Sulfuric Acid, Nitric Acid, Phosphoric Acid, Acetic Acid, Caustic Soda, Sodium Hypochlorite, Ferric Chloride, Textile Chemicals, Electroplating Chemicals, Industrial Wastewater Chemicals, and other corrosive industrial liquids.

Applications

Chemical processing plants, textile industries, electroplating industries, water treatment plants, pharmaceutical industries, fertilizer industries, and industrial chemical storage facilities.
